OpenWebUI Database Migration in Practice: Smoothly Migrating from Self-Hosted PostgreSQL on a VM to Azure Database for PostgreSQL

Migration

As the volume of users, conversations, files, and knowledge base data in OpenWebUI continued to grow, the self-hosted PostgreSQL instance on an Azure VM created an increasing operational burden, including database patching, backups, disaster recovery, storage monitoring, and security maintenance.

To reduce maintenance costs and improve database reliability, I migrated the OpenWebUI application database from PostgreSQL running locally on the VM to Azure Database for PostgreSQL Flexible Server.

This migration used the following approach:

Online full migration + data consistency validation + incremental synchronization of active conversations + rapid cutover

OpenWebUI remained online throughout the full database dump and restore. The final cutover involved only a brief Docker container recreation, making it almost imperceptible to users.

The server addresses, database names, usernames, passwords, and resource identifiers in this article have been hidden or replaced with placeholders.

Migration Background

OpenWebUI runs as a Docker container on an Azure VM. It originally used PostgreSQL installed on the same VM.

The architecture before migration was as follows:

Users
  │
  ▼
Azure VM
  ├── OpenWebUI Docker container
  │      └── Connects to PostgreSQL on the VM host
  │
  └── PostgreSQL
         └── Data stored on the VM's local disk

This deployment model was relatively simple, but as the application settled into stable operation, database maintenance became a new burden.

The work that had to be handled manually included:

PostgreSQL security updates and patches
Database backups and backup rotation
Data recovery and recovery drills
Disk capacity monitoring
Database service monitoring
PostgreSQL version upgrades
Incident response
Network and access permission management

For an application such as OpenWebUI, the database is an important stateful component, but it is not the primary operational focus of the application. Migrating PostgreSQL to an Azure managed service was therefore a more sensible choice.

Architecture After Migration

The architecture after migration is as follows:

Users
  │
  ▼
Azure VM
  └── OpenWebUI Docker container
          │
          ├── Private Endpoint
          │       └── Azure Database for PostgreSQL
          │
          └── Persistent directory on the host
                  ├── uploads
                  ├── vector_db
                  └── cache

The final setup achieved the following:

OpenWebUI uses Azure managed PostgreSQL
The database is accessed privately through a Private Endpoint
TLS is enabled for database connections
PostgreSQL no longer consumes local ports or disk space on the VM
OpenWebUI uploads and vector data are stored on persistent mounts
Azure performs automatic database backups
Only the PostgreSQL client remains on the VM for routine Azure database administration

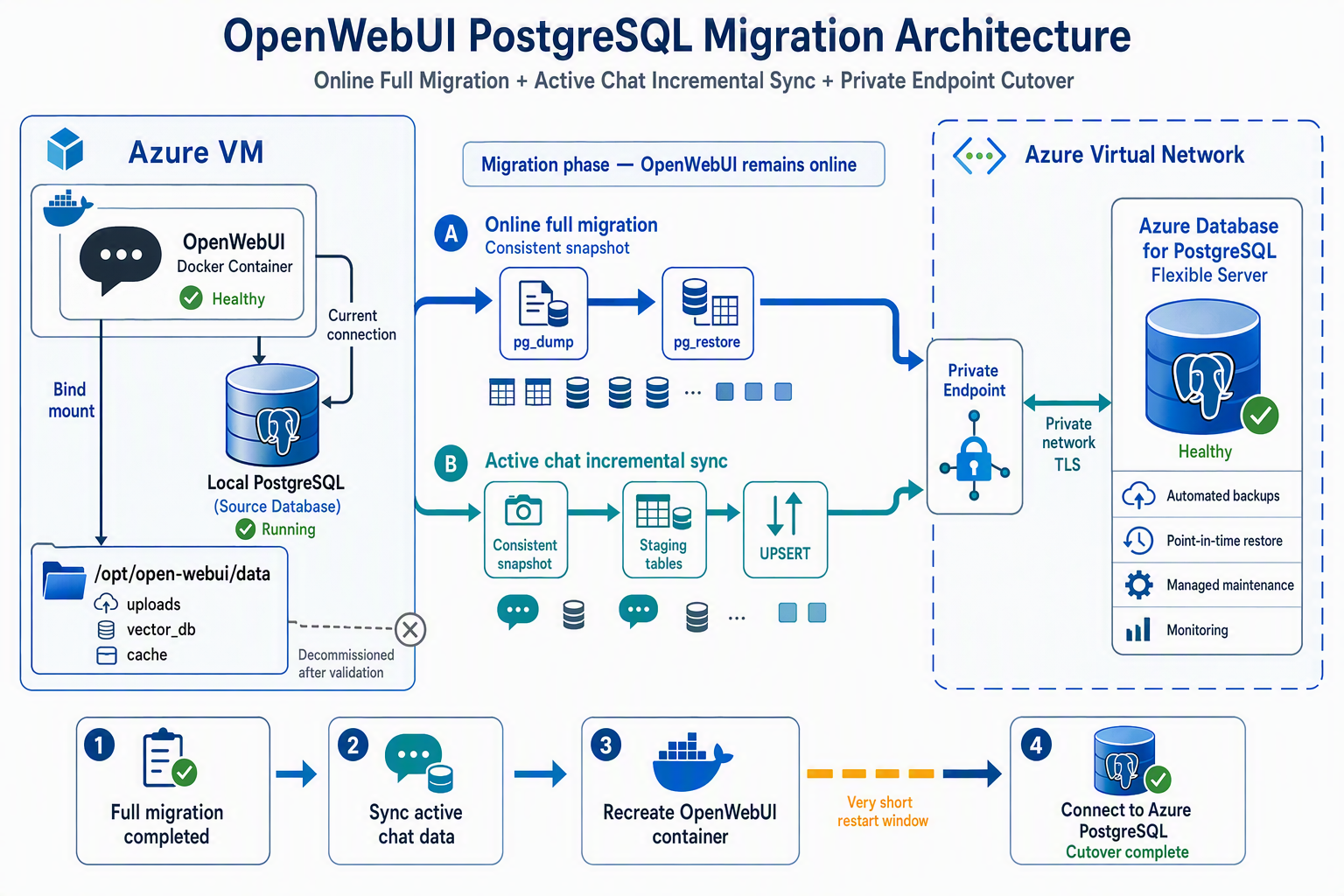

Architecture

Why Choose Azure Database for PostgreSQL?

1. Reduce Database Operational Overhead

Azure Database for PostgreSQL Flexible Server is a managed database service.

Compared with self-hosted PostgreSQL on a VM, Azure handles much of the underlying work, including:

Database infrastructure maintenance
Automated backups
Transaction log backups
Point-in-time restore
Monitoring metric collection
Storage management
Planned maintenance
Optional high availability
Optional read replicas

After the migration, the VM only needs to run OpenWebUI, while Azure manages the database lifecycle.

2. Automated Backups and Point-in-Time Restore

Azure Database for PostgreSQL provides built-in automated backups and continuously backs up transaction logs, supporting Point-in-Time Restore (PITR).

The current environment has an automated backup retention policy configured. If an accidental operation occurs, a new server can be created and restored to a specified point within the retention period.

Compared with maintaining custom pg_dump and Cron scripts, Azure managed backups provide the following advantages:

No backup scripts to maintain
No need to rotate backup files manually
No consumption of local VM disk space
Restoration to a specific point within the retention period
Backup operations are managed centrally by the platform

It is important to note that Azure built-in backups are primarily intended for platform-level restoration and are not equivalent to downloadable logical backup files.

If you have any of the following requirements, it is still advisable to run pg_dump periodically:

Long-term offline archiving
Cross-platform restoration
Data auditing
Cross-subscription or cross-cloud migration
Retention periods longer than the platform backup policy

3. Private Access Through a Private Endpoint

This migration did not expose PostgreSQL directly to the public internet. Instead, a Private Endpoint was configured for Azure Database for PostgreSQL.

When OpenWebUI accesses the database, the PostgreSQL FQDN resolves through Private DNS to a private IP address in the VNet:

Azure PostgreSQL FQDN
        ↓
Private DNS
        ↓
Private Endpoint IP address

Two levels of validation were performed from inside the OpenWebUI container:

Whether DNS resolves to a private address
Whether TCP port 5432 is reachable over the private network

Example:

docker exec -i open-webui python3 - <<'PY'
import socket

host = "<AZURE_POSTGRESQL_PRIVATE_FQDN>"
port = 5432

addresses = sorted({
    item[4][0]
    for item in socket.getaddrinfo(
        host,
        port,
        type=socket.SOCK_STREAM
    )
})

print("Resolved addresses:", addresses)

with socket.create_connection((host, port), timeout=5) as sock:
    print("TCP connection: OK")
    print("Connected peer:", sock.getpeername())
PY

Database security does not come from the Private Endpoint alone. It comes from a combination of the following measures:

Private Endpoint
Private DNS
VNet isolation
NSG and route controls
Disabled or restricted public access
PostgreSQL authentication
TLS encryption in transit
A least-privilege database account

4. Enable TLS for Database Connections

The OpenWebUI database connection string uses:

sslmode=require

The sanitized connection string has the following format:

postgresql://<APP_USER>:<PASSWORD>@<AZURE_POSTGRESQL_FQDN>:5432/<APP_DATABASE>?sslmode=require

Before the migration, TLS was also verified in the Python and SQLAlchemy environment used by OpenWebUI:

import os
from sqlalchemy import create_engine, text

engine = create_engine(os.environ["DATABASE_URL"])

with engine.connect() as conn:
    ssl_enabled = conn.execute(text("""
        SELECT ssl
        FROM pg_stat_ssl
        WHERE pid = pg_backend_pid()
    """)).scalar_one()

print("TLS enabled:", ssl_enabled)

For stricter security requirements, you can use:

sslmode=verify-full

This mode not only encrypts the connection but also validates the certificate and server hostname. It requires the CA certificate to be configured correctly and a server FQDN that matches the certificate.

5. Easier Expansion of Reliability Capabilities

After migrating to Azure Database for PostgreSQL, the following capabilities can be configured as OpenWebUI usage grows:

Compute scaling
Storage expansion
Availability zone high availability
Read replicas
Slow query analysis
Database connection monitoring
CPU, memory, and storage alerts
Longer backup retention
Geo-recovery strategies

This upgrades the OpenWebUI database layer from a local service on a single VM to an independent database service managed by Azure.

Migration Goal: Keep OpenWebUI Online as Much as Possible

A traditional migration typically follows this process:

Stop the application
  ↓
Export the database
  ↓
Restore the target database
  ↓
Update the connection configuration
  ↓
Restart the application

Although this approach is simple, downtime increases with the size of the database.

This migration used a different strategy:

Online full database dump
  ↓
Online restore to Azure PostgreSQL
  ↓
Validate schema, permissions, and data
  ↓
Synchronize active conversations created during migration
  ↓
Rapidly recreate the OpenWebUI container

OpenWebUI remained online during all of the following stages:

Full pg_dump
Azure PostgreSQL data restoration
Table schema validation
Data volume comparison
Private Endpoint validation
TLS validation
Incremental data synchronization

Only the replacement of DATABASE_URL and container recreation caused a brief connection interruption.

More precisely, this was:

A near-zero-downtime OpenWebUI database migration that was almost imperceptible to users.

Pre-Migration OpenWebUI Checks

1. Confirm the Database Type Used by OpenWebUI

First, inspect the OpenWebUI container environment variables:

docker inspect open-webui \
  --format '{{range .Config.Env}}{{println .}}{{end}}' |
grep -E 'DATABASE_URL|DATA_DIR|WEBUI_SECRET_KEY'

Confirm that OpenWebUI is already using PostgreSQL rather than the default SQLite database:

DATABASE_URL=postgresql://<LOCAL_USER>:***@<LOCAL_HOST>:5432/<LOCAL_DATABASE>

Because both the source and target are PostgreSQL, the migration can use:

pg_dump → pg_restore

No SQLite-to-PostgreSQL conversion tool is required.

2. Inspect the Source Database

Check the PostgreSQL version and database size:

sudo -u postgres psql \
  -d <LOCAL_DATABASE> \
  -c "
SELECT
  current_database(),
  current_setting('server_version'),
  pg_size_pretty(
    pg_database_size(current_database())
  );
"

Also check which extensions the source database uses:

sudo -u postgres psql \
  -d <LOCAL_DATABASE> \
  -c "
SELECT extname, extversion
FROM pg_extension
ORDER BY extname;
"

The source database in this migration did not use any additional third-party extensions, reducing the compatibility risk of migrating between environments.

3. Inspect OpenWebUI Local Files

The database does not contain all OpenWebUI data.

An inspection of the container mounts revealed that the original container had no persistent volume configured, while /app/backend/data already contained a significant amount of data:

/app/backend/data
├── cache
├── uploads
└── vector_db

This content includes:

User-uploaded files
Vector databases
Cache data
Other local application state

These files are not included in a PostgreSQL pg_dump and must therefore be handled separately.

This was a particularly important discovery during the migration:

Migrating the OpenWebUI PostgreSQL database does not mean that all OpenWebUI data has been migrated.

Prepare Azure Database for PostgreSQL

1. Create a Dedicated Application Account

It is not advisable for OpenWebUI to use the Azure PostgreSQL administrator account over the long term.

Create a dedicated role on the target server:

CREATE ROLE <APP_USER> LOGIN;

Set the password interactively through psql to prevent it from appearing in the shell history:

\password <APP_USER>

Then create the target database:

CREATE DATABASE <APP_DATABASE>
OWNER <APP_USER>;

2. Validate the Application Account

psql \
  "host=<AZURE_POSTGRESQL_FQDN> \
   port=5432 \
   dbname=<APP_DATABASE> \
   user=<APP_USER> \
   sslmode=require" \
  -W \
  -c "SELECT current_user, current_database();"

Also confirm that the target database is empty:

SELECT count(*)
FROM information_schema.tables
WHERE table_schema = 'public'
  AND table_type = 'BASE TABLE';

3. Handle `public` Schema Permissions

The first test restoration encountered this error:

ERROR: permission denied for schema public

The application account could connect to the database but did not have permission to create objects in the public schema.

Connect to the target database with the administrator account and run:

ALTER SCHEMA public OWNER TO <APP_USER>;

GRANT USAGE, CREATE
ON SCHEMA public
TO <APP_USER>;

This issue demonstrates that verifying whether an account can log in is not enough. You must also confirm that it can:

Create tables
Create indexes
Create sequences
Create constraints
Run OpenWebUI Alembic database migrations

Perform the Full Database Migration Online

1. Export the OpenWebUI Database Online

PostgreSQL pg_dump exports data from a consistent transactional snapshot, so it can run while OpenWebUI remains online.

sudo -u postgres pg_dump \
  --dbname=<LOCAL_DATABASE> \
  --format=custom \
  --no-owner \
  --no-acl \
  --file=/tmp/openwebui-pre-migration.dump

The parameters mean:

--format=custom: use the PostgreSQL custom archive format
--no-owner: do not restore source object ownership
--no-acl: do not restore source permissions
--file: specify the backup file

Check whether the archive is valid:

pg_restore \
  --list \
  /tmp/openwebui-pre-migration.dump |
head -30

The custom format preserves:

Table schemas
Table data
Primary keys
Unique constraints
Indexes
Foreign keys
Sequences
Alembic migration versions

2. Restore to Azure Database for PostgreSQL

pg_restore \
  --host=<AZURE_POSTGRESQL_FQDN> \
  --port=5432 \
  --username=<APP_USER> \
  --dbname=<APP_DATABASE> \
  --no-owner \
  --no-acl \
  --exit-on-error \
  --verbose \
  /tmp/openwebui-pre-migration.dump

Using:

--exit-on-error

ensures that restoration stops immediately when an error occurs instead of ignoring a critical problem.

After a successful restoration, update the statistics:

psql \
  "host=<AZURE_POSTGRESQL_FQDN> \
   port=5432 \
   dbname=<APP_DATABASE> \
   user=<APP_USER> \
   sslmode=require" \
  -W \
  -c "ANALYZE;"

Compare Data Between the Source and Target

After the restoration is complete, compare the core OpenWebUI tables.

Example query:

SELECT
  (SELECT count(*) FROM "user") AS users,
  (SELECT count(*) FROM chat) AS chats,
  (SELECT count(*) FROM chat_message) AS chat_messages,
  (SELECT count(*) FROM file) AS files,
  (SELECT count(*) FROM knowledge) AS knowledge,
  (
    SELECT count(*)
    FROM information_schema.tables
    WHERE table_schema = 'public'
      AND table_type = 'BASE TABLE'
  ) AS tables;

Key items to check include:

Number of users
Number of conversations
Number of messages
Number of file records
Number of knowledge bases
Number of application tables
Alembic version
Table owners
Sequence states

The comparison revealed that the target contained slightly fewer conversation messages than the source.

This was not a restoration failure. It happened because:

OpenWebUI remained online during the full backup and restoration, and the active conversation used for the migration work continued to generate new messages.

The next step was therefore to synchronize the data created after the full snapshot.

Synchronize Active Conversation Updates During Migration

During this migration, only the current working conversation was still being updated. Instead of restoring the entire database again, only the active conversation was synchronized.

Two tables were involved:

chat
chat_message

1. Find the Most Recently Updated Conversation

SELECT
  c.id,
  c.title,
  to_timestamp(c.updated_at) AS updated_at,
  count(cm.id) AS message_count
FROM chat c
LEFT JOIN chat_message cm
  ON cm.chat_id = c.id
GROUP BY
  c.id,
  c.title,
  c.updated_at
ORDER BY c.updated_at DESC
LIMIT 5;

After identifying the active conversation, subsequent scripts receive its ID through an environment variable or argument rather than embedding it directly in public documentation:

CHAT_ID="<ACTIVE_CHAT_ID>"

2. Export Conversation Data from a Consistent Snapshot

To ensure that chat and chat_message come from the same point in time, use a read-only, repeatable-read transaction:

BEGIN TRANSACTION
ISOLATION LEVEL REPEATABLE READ
READ ONLY;

Then export both tables in the same transaction:

\copy (
  SELECT *
  FROM chat
  WHERE id = '<ACTIVE_CHAT_ID>'
) TO '/tmp/chat.csv'
WITH (FORMAT CSV);

\copy (
  SELECT *
  FROM chat_message
  WHERE chat_id = '<ACTIVE_CHAT_ID>'
  ORDER BY created_at, id
) TO '/tmp/chat-messages.csv'
WITH (FORMAT CSV);

Finally, commit the transaction:

COMMIT;

Note that psql \copy is a client-side meta-command. Complex field lists are best written on one line; otherwise, the following error may occur:

\copy: parse error at end of line

3. Use Temporary Tables and UPSERT in Azure

Create temporary staging tables on the target:

CREATE TEMP TABLE stage_chat
(LIKE public.chat INCLUDING DEFAULTS);

CREATE TEMP TABLE stage_chat_message
(LIKE public.chat_message INCLUDING DEFAULTS);

After importing the CSV files into the temporary tables, perform an UPSERT on the primary chat record:

INSERT INTO public.chat (...)
SELECT ...
FROM stage_chat
ON CONFLICT (id) DO UPDATE SET
  title              = EXCLUDED.title,
  updated_at         = EXCLUDED.updated_at,
  chat               = EXCLUDED.chat,
  meta               = EXCLUDED.meta,
  current_message_id = EXCLUDED.current_message_id;

Perform a similar operation on the message table:

INSERT INTO public.chat_message (...)
SELECT ...
FROM stage_chat_message
ON CONFLICT (id) DO UPDATE SET
  content         = EXCLUDED.content,
  output          = EXCLUDED.output,
  status_history  = EXCLUDED.status_history,
  error           = EXCLUDED.error,
  usage           = EXCLUDED.usage,
  done            = EXCLUDED.done,
  updated_at      = EXCLUDED.updated_at,
  context_summary = EXCLUDED.context_summary;

To make the conversation’s message set in Azure exactly match the source snapshot, delete any extra records from the target:

DELETE FROM public.chat_message target
WHERE target.chat_id = '<ACTIVE_CHAT_ID>'
  AND NOT EXISTS (
    SELECT 1
    FROM stage_chat_message staged
    WHERE staged.id = target.id
  );

Run the entire import and UPSERT process in a single transaction:

BEGIN;

-- Create temporary tables
-- Import data
-- UPSERT
-- Remove extra records

COMMIT;

If any step fails, the transaction rolls back automatically and leaves no partially synchronized data behind.

Perform the Final Rapid OpenWebUI Cutover

After completing the online full migration, the final procedure was:

Synchronize the active conversation one last time
              ↓
Recreate the OpenWebUI container
              ↓
The new container connects to Azure PostgreSQL

Example:

./sync-active-chat-to-azure.sh && \
docker compose \
  -f run-with-azure-pg.yml \
  up -d --force-recreate

The complete database had already been migrated and validated, so there was no need to wait for hundreds of megabytes of data to be restored again during the final stage. Only a small number of incremental records had to be synchronized before the container was recreated quickly.

This reduced the cutover window to the time required for the container to start.

Store the OpenWebUI Database Connection String Securely

The database connection string was not written directly into the Compose file. It was stored in a separate environment file:

open-webui-azure-db.env

The file has the following format:

DATABASE_URL=postgresql://<APP_USER>:<URL_ENCODED_PASSWORD>@<AZURE_POSTGRESQL_FQDN>:5432/<APP_DATABASE>?sslmode=require

Set the file permissions to:

chmod 600 open-webui-azure-db.env

If the password contains special characters, URL-encode it first:

python3 - <<'PY'
import getpass
import urllib.parse

password = getpass.getpass("Database password: ")
print(urllib.parse.quote(password, safe=""))
PY

Example of the new Compose file:

services:
  open-webui:
    image: ghcr.io/open-webui/open-webui:<VERSION>
    container_name: open-webui
    restart: always

    ports:
      - "8080:8080"

    env_file:
      - ./open-webui.env
      - ./open-webui-azure-db.env

    volumes:
      - /opt/open-webui/data:/app/backend/data

Persist OpenWebUI Local Files

Before the migration, OpenWebUI’s /app/backend/data directory was not mounted on the host.

First, copy the data out of the container:

sudo install \
  -d \
  -m 700 \
  -o "$(id -un)" \
  -g "$(id -gn)" \
  /opt/open-webui/data

docker cp \
  open-webui:/app/backend/data/. \
  /opt/open-webui/data/

Add the following to the Compose file:

volumes:
  - /opt/open-webui/data:/app/backend/data

This ensures that the following content is retained even if the OpenWebUI container is recreated or upgraded in the future:

Uploaded files
Vector databases
Cache data
Other local application data

Verify after migration:

docker inspect open-webui \
  --format '{{range .Mounts}}{{println .Source "->" .Destination "rw=" .RW}}{{end}}'

Expected output:

/opt/open-webui/data -> /app/backend/data rw=true

Post-Migration Validation

1. OpenWebUI Health Check

curl \
  -sS \
  -o /dev/null \
  -w 'HTTP %{http_code}\n' \
  --max-time 10 \
  http://127.0.0.1:8080/health

Expected output:

HTTP 200

2. Verify the Database Currently Used by OpenWebUI

To avoid exposing the password, parse only the non-sensitive parts of the connection string:

docker exec -i open-webui python3 - <<'PY'
import os
from urllib.parse import urlsplit

u = urlsplit(os.environ["DATABASE_URL"])

print("Database host configured:", bool(u.hostname))
print("Database port:", u.port)
print("TLS required:", "sslmode=require" in u.query)
PY

Key validation points:

The host no longer points to PostgreSQL on the local VM
The port is 5432
sslmode=require is enabled

3. Inspect Startup Logs

docker logs \
  --since 15m \
  open-webui 2>&1 |
grep -Ei \
  'error|fatal|exception|traceback|permission denied|database|postgres|alembic|ssl|timeout'

Under normal conditions, only messages similar to the following should appear:

INFO [alembic.runtime.migration] Context impl PostgresqlImpl.
INFO [alembic.runtime.migration] Will assume transactional DDL.

The following should not appear:

Database connection failures
Password authentication failures
TLS errors
Schema permission errors
Alembic migration failures
Python tracebacks

Uninstall PostgreSQL from the VM

After confirming that OpenWebUI is stably connected to Azure Database for PostgreSQL, the local PostgreSQL installation can be removed from the VM.

First, confirm that:

The OpenWebUI health check succeeds
The database connection has been switched
Azure Database for PostgreSQL contains the latest data
The automated backup policy is enabled
No application connections remain on the local PostgreSQL instance

Stop and remove the local cluster:

sudo pg_dropcluster \
  --stop \
  <POSTGRESQL_VERSION> \
  main

Uninstall the PostgreSQL server packages:

sudo apt-get purge -y \
  postgresql \
  postgresql-<POSTGRESQL_VERSION> \
  postgresql-contrib

Remove leftover data and configuration:

sudo rm -rf \
  /var/lib/postgresql \
  /etc/postgresql \
  /var/log/postgresql

The PostgreSQL client packages can remain installed:

postgresql-client
postgresql-client-common

This allows Azure Database for PostgreSQL to continue being administered from the VM with psql.

Finally, check local port 5432:

if sudo ss -lntp | grep -q ':5432'; then
  sudo ss -lntp | grep ':5432'
else
  echo "No local PostgreSQL listener"
fi

Lessons Learned During Migration

1. Database Migration Does Not Mean All OpenWebUI Data Has Been Migrated

In addition to PostgreSQL, OpenWebUI may store the following in /app/backend/data:

Uploaded files
Vector databases
Cache data
Local state files

Running pg_dump alone does not migrate this content.

2. Do Not Test Port Connectivity Alone

A successful nc connection proves only that TCP port 5432 is reachable. It does not prove that:

The PostgreSQL user can log in
The password is correct
TLS works correctly
Database permissions are correct
The driver used by OpenWebUI is compatible

At minimum, complete the following validation chain:

DNS → TCP → PostgreSQL login → TLS → SQL query → Actual OpenWebUI connection

3. Database Ownership Does Not Necessarily Grant Schema Creation Permission

Even if the application user owns the database, it may still encounter:

permission denied for schema public

Before migration, verify that the application account has:

USAGE
CREATE
Ownership of tables and sequences
Permission to run Alembic DDL

4. Incremental Writes Must Be Handled After an Online Full Backup

pg_dump provides a consistent snapshot from the start of the backup.

Conversations and messages created by OpenWebUI during the backup are not automatically added to a dump that has already completed. An online migration must therefore include one of the following mechanisms:

A new full backup after writes are stopped
Logical replication
CDC
Application dual writes
Incremental synchronization by application object

This migration used a “full snapshot + active conversation UPSERT” approach.

5. Do Not Upgrade OpenWebUI During the Migration

The OpenWebUI image version remained unchanged throughout this migration.

If the application is upgraded at the same time as the database migration, any problem becomes difficult to attribute. It could come from:

The PostgreSQL version
Data migration
Azure networking
Database permissions
The OpenWebUI version
Alembic schema changes

A safer approach is:

Migrate the database and stabilize it first
          ↓
Upgrade OpenWebUI separately afterward

Is This Truly Zero Downtime?

From the user’s perspective, this migration was close to zero downtime:

The full backup was completed online
The target database was restored online
Data validation was completed online
The active conversation was synchronized online
The OpenWebUI container was recreated only once at the end

Under a strict engineering definition, however, true zero downtime also requires:

New connections can be accepted at all times
No writes at the final moment can be lost
There is no single-instance container restart window
Client connections are never interrupted
Automated traffic switching is available

Larger OpenWebUI deployments can consider:

PostgreSQL logical replication
Azure Database Migration Service
CDC-based incremental migration
Application dual writes
Blue-green deployment
Multiple OpenWebUI instances
Reverse proxy health checks
Connection draining and traffic switching

For a single VM, a single OpenWebUI container, and a small-to-medium database, this approach achieved a good balance among complexity, risk, and downtime.

Routine Operations After Migration

Start OpenWebUI:

docker compose \
  -f run-with-azure-pg.yml \
  up -d

Check its status:

docker compose \
  -f run-with-azure-pg.yml \
  ps

View logs:

docker compose \
  -f run-with-azure-pg.yml \
  logs -f --tail=200

Run a health check:

curl \
  -sS \
  -o /dev/null \
  -w 'HTTP %{http_code}\n' \
  http://127.0.0.1:8080/health

Routine monitoring should also focus on the following Azure Database for PostgreSQL metrics and events:

CPU utilization
Memory usage
Storage space
Number of active connections
Number of failed connections
Query latency
Automated backup status
Maintenance events
Private Endpoint status

Conclusion

This migration smoothly moved the OpenWebUI database from self-hosted PostgreSQL on an Azure VM to Azure Database for PostgreSQL Flexible Server.

The final setup achieved:

An OpenWebUI database managed by Azure
Private access through a Private Endpoint
TLS-enabled database connections
Automated backups and point-in-time restore
Persistent OpenWebUI local files
Complete decommissioning of PostgreSQL on the VM
Closure of local port 5432
Continuous application availability during the full migration
Minimal user impact during the final cutover

The most important lesson from this migration is:

A low-downtime database migration for OpenWebUI should not focus only on pg_dump and pg_restore. It must also account for incremental writes, Private Endpoint connectivity, TLS, database permissions, Alembic migrations, and local files in /app/backend/data.

By combining online full migration, target-side pre-validation, incremental synchronization of active data, and rapid container cutover, a small-to-medium OpenWebUI deployment can be migrated smoothly to Azure managed PostgreSQL without introducing a complex CDC platform.

Migration Background#

Architecture After Migration#

Why Choose Azure Database for PostgreSQL?#

1. Reduce Database Operational Overhead#

2. Automated Backups and Point-in-Time Restore#

3. Private Access Through a Private Endpoint#

4. Enable TLS for Database Connections#

5. Easier Expansion of Reliability Capabilities#

Migration Goal: Keep OpenWebUI Online as Much as Possible#

Pre-Migration OpenWebUI Checks#

1. Confirm the Database Type Used by OpenWebUI#

2. Inspect the Source Database#

3. Inspect OpenWebUI Local Files#

Prepare Azure Database for PostgreSQL#

1. Create a Dedicated Application Account#

2. Validate the Application Account#

3. Handle public Schema Permissions#

Perform the Full Database Migration Online#

1. Export the OpenWebUI Database Online#

2. Restore to Azure Database for PostgreSQL#

Compare Data Between the Source and Target#

Synchronize Active Conversation Updates During Migration#

1. Find the Most Recently Updated Conversation#

2. Export Conversation Data from a Consistent Snapshot#

3. Use Temporary Tables and UPSERT in Azure#

Perform the Final Rapid OpenWebUI Cutover#

Store the OpenWebUI Database Connection String Securely#

Persist OpenWebUI Local Files#

Post-Migration Validation#

1. OpenWebUI Health Check#

2. Verify the Database Currently Used by OpenWebUI#

3. Inspect Startup Logs#

Uninstall PostgreSQL from the VM#

Lessons Learned During Migration#

1. Database Migration Does Not Mean All OpenWebUI Data Has Been Migrated#

2. Do Not Test Port Connectivity Alone#

3. Database Ownership Does Not Necessarily Grant Schema Creation Permission#

4. Incremental Writes Must Be Handled After an Online Full Backup#

5. Do Not Upgrade OpenWebUI During the Migration#

Is This Truly Zero Downtime?#

Routine Operations After Migration#

Conclusion#
